Pulsar Axion 2 Monocular Shooting

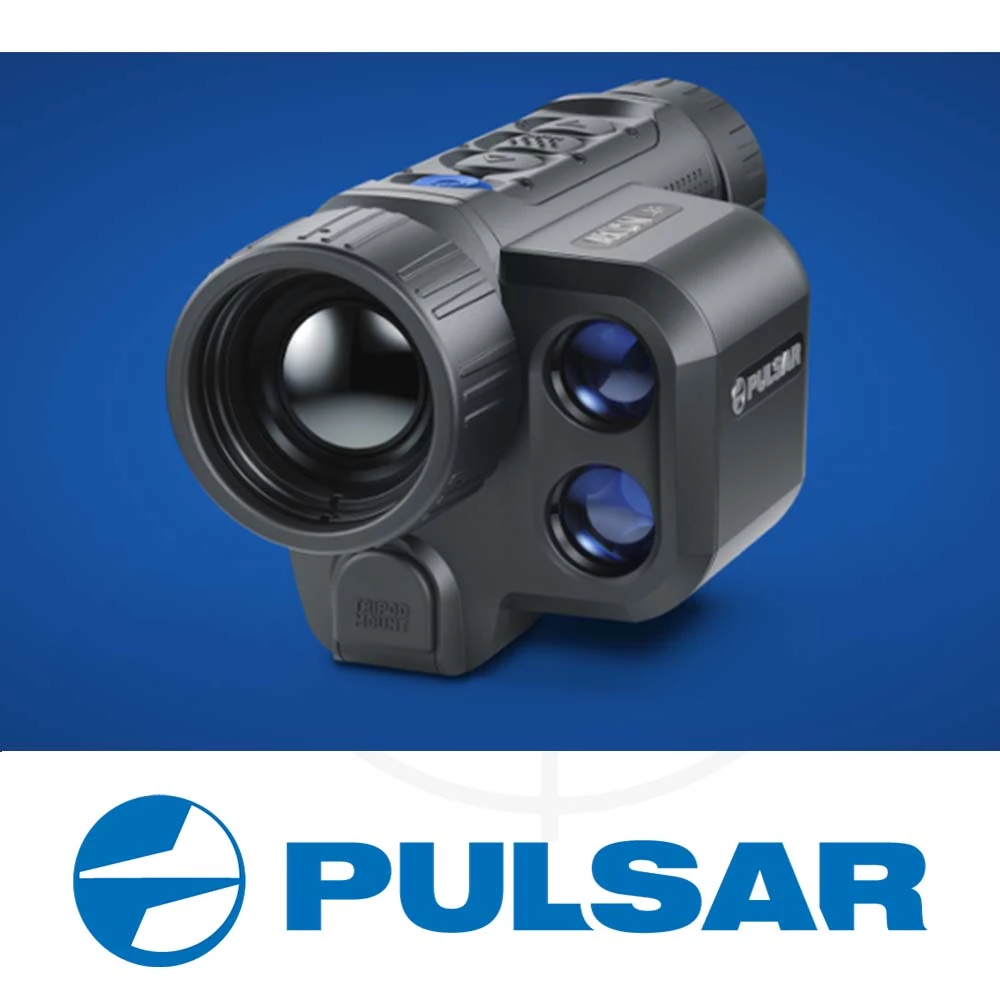

AXION LRF XQ38 compact thermal imaging monocular with built-in laser rangefinder from PULSAR for hunting, forestry, security, search and rescue, outdoor recreation and sports.

For image acquisition unit utilizes a new generation of 17 µm thermal imaging sensors with 384×288 pixels resolution and <40 mK NETD. The unit possesses built-in laser rangefinder, long-life quick-change battery APS5.

Light-weight and Rugged Magnesium Alloy Housing

Housing made from light-weight magnesium alloy ensures high structural rigidity and ruggedness. Small weight of the monocular makes it a perfect option for long outdoor trips when light yet capable unit is necessary.

Detection range more than 1300 meters

A powerful F38/1.2 objective lens combined with a 384×288@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1350 m away in complete darkness.

Image Boost Technology

Pulsar’s proprietary Image Boost Technology is comprised of software algorithms designed to increase imaging clarity and overall image detail. Image Boost results in a sharper, more detailed field of view and enhanced object identification capabilities.

IPX7 Waterproof Rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

Full-Colour, HD AMOLED Display

New HD display delivers crisp, richly contrasted, vividly coloured field of view, AMOLED technology ensures flawless, fluid, high-resolution imaging and power saving.

B-Pack mini APS5 battery system

Quick-change high capacity rechargeable Li-Ion battery offers 6 hours of operation time on single charge. Fast and easy battery replacement in combination with instant start-up ensure continuous observation without disruptions. Ordinary power bank connected via USB Type-C socket can be used as an external power source.

Observation Modes

Image optimization should be performed depending on the environmental location and conditions. Mountains, cities and forests have different ambient temperatures. In order to achieve the highest possible image quality, certain settings have been optimized and gathered into profiles. As a result, optimized imaging in various conditions is easier. Identification pre-set is another optimal-imaging option that makes identifying easier, even at longer distances.

Colour Palettes

The 8-colour palette enhances viewing in varying conditions. While the classic White Hot mode is exceptionally versatile, Hot Black is often favoured for detecting wildlife at night. Red Monochrome helps to reduce or prevent bright backlight from exiting the eyepiece. Sepia often improves long-range observation while Red Hot, Rainbow and Ultramarine enhance temperature differences of various object attributes. Violet helps to identify objects faster.

Variable Digital Zoom from 3.5x to 14x

Digital zoom, up to 14x, provides improved focus and better overall object recognition at significant distances. The zoom changes either gradually in 2x step or continuously for a truly optimum, customized field of view for specific situation.

Picture-in-Picture Function

Picture-in-picture displays a magnified image at the top-centre 10% of the overall field of view for precise zooming on an object of interest.

Specifications

Sensor   – 384×288 pix. @ 17 µm (NETD <40 mK)

Objective lens    F38/1.2

Magnification, x 3.5 – 14 (x4 zoom)

Field of view (HxV), degrees / m@100m  9.8×7.4 / 17.2×12.9

Detection range,              1350m

SensorType         uncooled

Resolution,  384×288 pixels

Pixel pitch, 17µm

Frame rate, 50 Hz

Display Type       AMOLED

Resolution, 1024×768 pixels

Environmental Characteristics

Degree of protection, IPX7 IP code (IEC60529)

Operating temperature range, -25 – +40°С

Power Supply

Output voltage, 3.0 – 4.2V

Battery type       Li-Ion Battery Pack APS5

Capacity, 4900 mAh

External power supply, 5V

Weight & Size

Dimensions, 167x74x73 mm

Weight, 0.4kg
